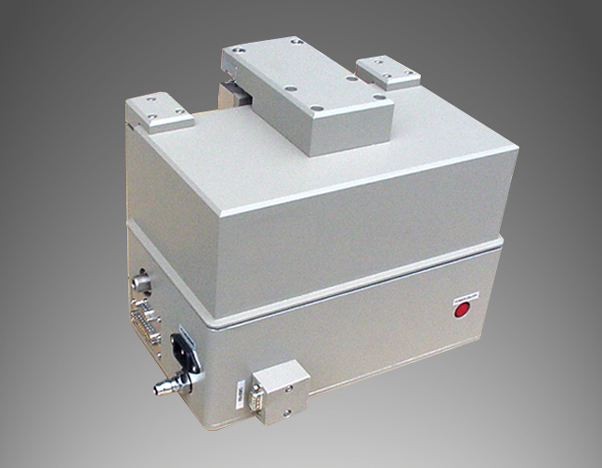

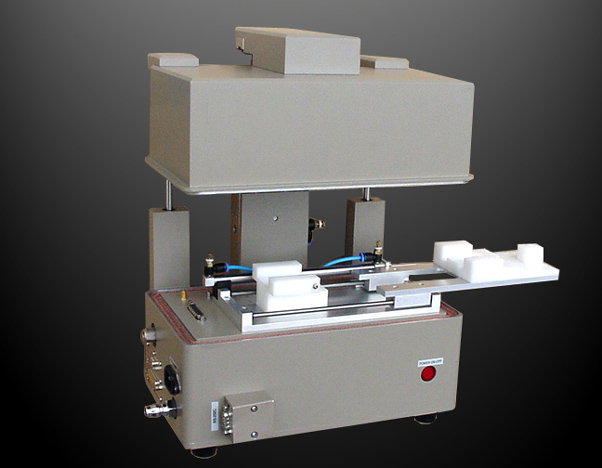

The TC-5942A/B/BC Pneumatic Shield Box provides an efficient RF isolated test environment for the manufacturing of mobile phones and PCB assemblies.

                                                            ( Click  to enlarge )

  Features

• Pneumatic control for manual or semi-automatic operation

• High RF shielding, > 80 dB

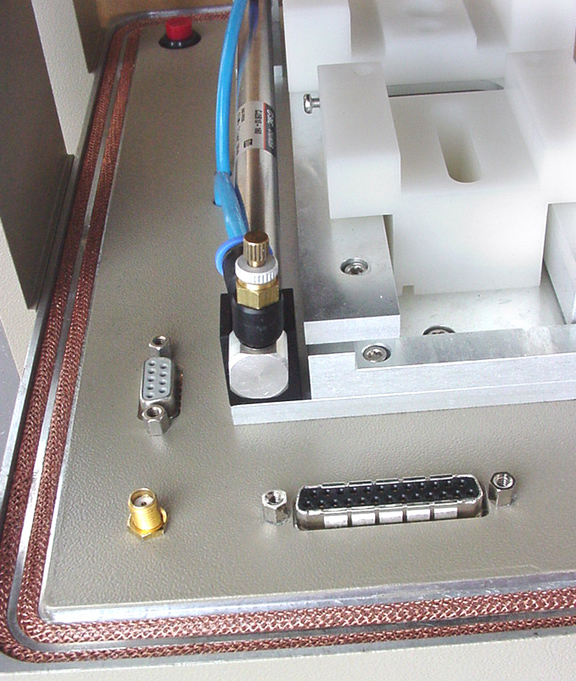

• EMI filters on all data and DC lines

• RS-232C open-close control

• Safety protective cover (5942B and BC)

• Customization to meet various data and RF connection requirements

• Easy-to-exchange customized fixtures

• Red and Green LED for the pass/fail indication

• CE compliant. EN 50081-1, EN 50082-2 and EN 60950 (TC-5942BC)

Target devices: mobile phones, PCBs and similar devices

Customizable signal connections:

     Device control data

     Analog/digital probe signals on a PCB under test

     Tx/Rx signals

     RF probe signal

     OTA RF coupling

     SIM card and DC power connection

     Acoustic coupling (depending on shape of mobile phone)

•     Long Life. Typically 1,000,000 open/close cycle

•    Ability to control lid opening and closing speed

•    Lid opens when the compressed air is connected or power is turned on

•    Build-in electronics open/close counter,  able to read the number of times by control PC

•    Lid moves downward at the air pressure of 1.5 bar (kg/cm²) or less until the lid is 5 mm above bottom plate (Option 70).

Typically, every device has a unique outline and connection configuration requiring unique handler and fixture customization to move DUT in and out of the cell and make data/RF connections, and to move probe pins or connectors up and down for signal probing.

    Shielding effectiveness:  > 80 dB to 2 GHz including connectors. Typically >70 dB to 2.4 GHz

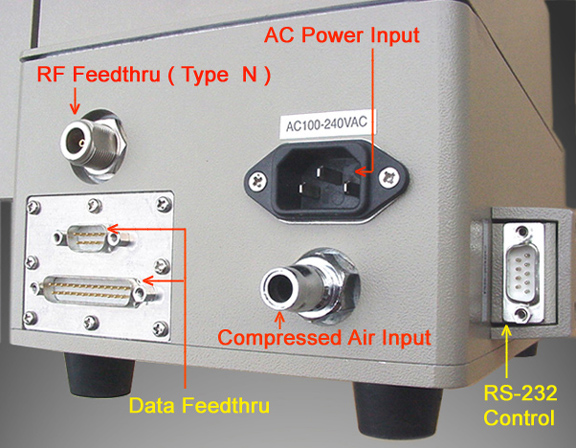

RF connector:  Type N outside, SMA inside
Data connector:  One 9 pin and one 25 pin D-Type, filtered

Data line capacity:  100 VDC, 3 Amps maximum
Remote control:  RS-232C, 3 wire, 9 pin D type
Compressed air requirement:   Minimum 5 bar, maximum 7.5 bar
Compressed air connector:   Sang-A PMM06 One Touch Fitting, 6 mm (0.23") inner diameter

Air connector between handler/fixture and main body: One touch fitting, 4 mm (0.15") diameter

Line voltage:   100 to 240 volt AC, 50/60 Hz, 16 watt
Working space:  256 (W) x 125 (D)  x 80 (H) mm

                       {10.07" (W) x 4.92" (D) x 3.15"(H)}

Dimension: 330 ( W ) x 235 ( D ) x 261 ( H ) mm {12.99" (W) x 9.25" (D) x 10.27"(H)}, close state. 416 ( H ) mm (16.38"), open state.

Weight without handler and fixture: 12 kg (26.46lbs).
Accessories supplied: N to N cable, 9 pin RS-232C cable, 9 pin and 25 pin data cable, Spare pogo pins if applicable, Power cable, Operating manual

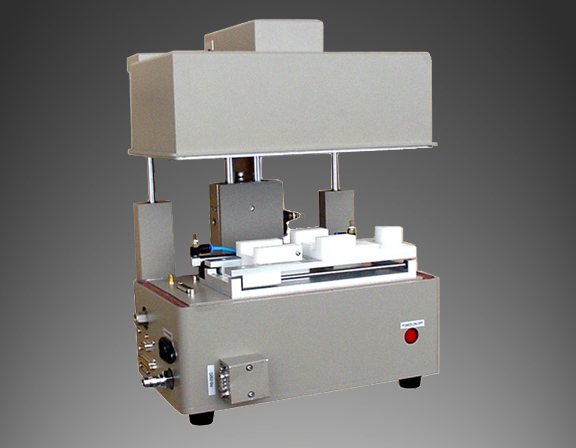

 TC-5942A, Dual open/close switch. Wider side front.

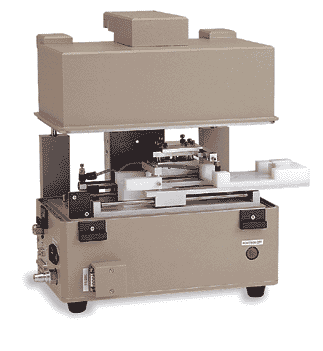

TC-5942B, Single open/close switch. Narrower side front. Clear plastic safety cover.

TC-5942BC, CE compliant version of 5942B. EN 50081-1, EN 50082-2 and EN 60950

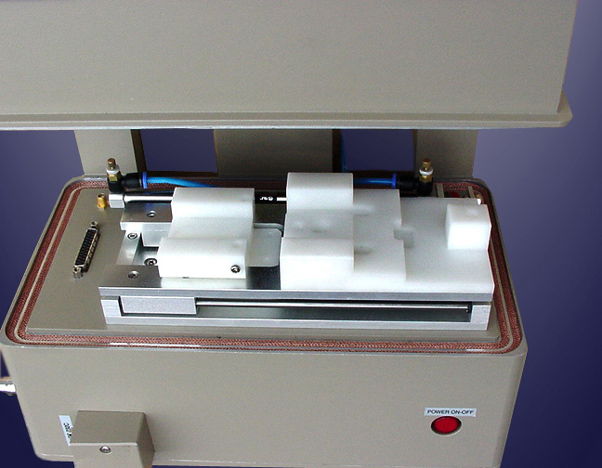

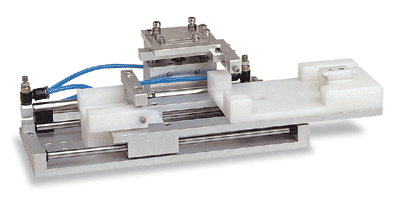

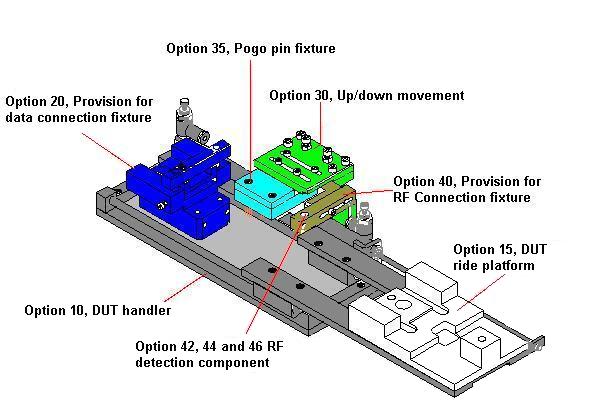

Option 10, DUT handler. Moves DUT in and out of cell.

Option 15, DUT ride platform, max DUT size 150(l) x 60(w) x 30(h) mm {5.90"(l) x 2.36"(w) x 1.18"(h).

Option 20, Provision for data connector.

Option 30, Up/down movement mechanism for pogo pin fixture.

Option 35, Pogo pin fixture.

Option 40, Provision for RF connection fixture.

Option 42, RF Probe for PCB.

Option 44, OTA RF coupler.

Option 46, Customer furnished RF connector.

Option 50, Safety bar (5942A only).

Option 60, Acoustic test fixture. Availability depends on shape of mobile unit.

Option 70, Dual pressure mode lid control. Moves lid downward with 1.5 bar air pressure.

Option 90, Absorber pad for additional four sides (for 5942A only).

  Optional and spare accessories

5942-35-xx, Pogo pin fixture assembly, includes cable and connector

5942-42, RF probe for PCB

5942-44, OTA RF coupler

5942-80, Spare shielding gasket, set of 2 pcs

5942-90, Spare absorber pad, set of 4 pcs

RF cable, SMA to SMA, 330 mm for RF probe

RF probe pin

PCB probe pin with pin socket

Maintenance kit; consist of replacement pogo pin/socket, gaskets, pin socket tool, replacement screws, hexa-screw driver, RF cable, Test antenna, Hand Valve

SPECIFICATIONS SUBJECT TO CHANGE WITHOUT PRIOR NOTICE
